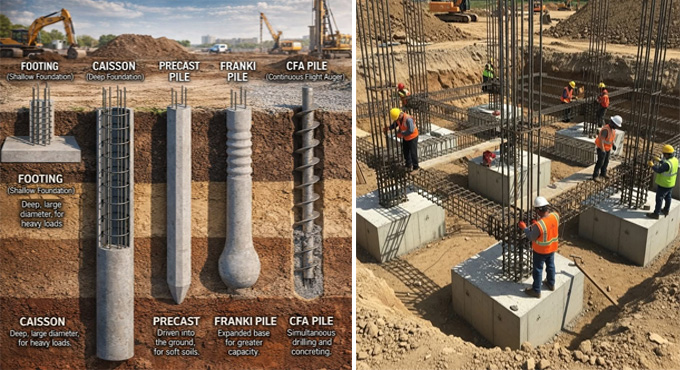

What are the Minimum Depth Requirements for the Foundation Structure?
The foundation is one of the most crucial parts of the construction structure, which helps to receive the load of the superstructure and helps to transmit that load to the soil underneath in such a way that the soil never fails in shear. Thus, the building structure never goes through excessive settlement.
Learn about the factors that impact the depth of the foundation
Load-bearing capacity
The load-bearing capacity of the soil refers to the ability of the soil to support the weight of the construction structure without any kind of excessive settlement or failure. The foundation structure should reach the soil layer which can safely carry the load of the entire building structure. For identifying the soil layers, engineers should conduct soil tests at various depths of the soil.
The sandy soils help to offer good load-bearing capacity near the surface; on the other hand, the clay soil requires a deeper foundation to reach the stable layers for the foundation's structure. The depth of the foundation should be extended to the layer on which the soil can handle both live load and dead loads of the construction structure.
Weather conditions
The clay soil faces unique challenges due to its expansion ability when wet and its shrinkage when dry. In the rainy season, the clay soil absorbs water and becomes swollen, whereas in the dry season, the clay soil contracts and can also create gaps. This seasonal movement of the clay soil causes a shift of the foundation and leads to structural damage to the foundation structure.
Frost-related considerations
When water in the soil freezes and expands, it leads to the occurrence of frost heave, which can push the foundation structure upward. On the other hand, fine sands and silts are susceptible as they retain moisture while allowing the formation of ice crystals. In the case of ice melting in spring, the foundation structure can settle unevenly. In cold climates, the foundation structure should extend below the frost line or the maximum depth where the ground freezes. This foundation depth can also vary on the basis of the location, for example, 0.5 meters in mild climates and over 2 meters in extremely cold regions.
Scour depth considerations
The scour depth is another important factor for the building structure near water bodies like streams, rivers, or coastlines. The foundation of the bridge should account for potential scour. In this context, engineers should calculate the maximum expected scour depth on the basis of the soil type, water velocity and historical flood data.
Presence of topsoil and fill materials
The topsoil and fill materials are often loose, inconsistent or organic, which are unsuitable for foundation support. In this context, the foundation should penetrate through these unreliable layers to reach the natural, undisturbed soil layer to achieve long-term stability and durability.
Requirements for the foundation structure
Standard minimum requirement for the foundation depth
The minimum foundation depth should be about 0.5 meters below the natural ground level. This minimum depth requirement exists regardless of soil type or structural loads. This depth helps to provide a baseline safety margin against the minor ground movements, erosion and surface disturbances. The minimum standard requirement also helps to ensure that the foundation structures are not placed too shallow, even in ideal conditions. Most of the foundations require greater depth than 0.5 meters.
Filled-up ground considerations for the foundation depth
The construction sites with filled-up materials present special challenges as the fill materials do not provide adequate support to the construction structure. In the case of constructing on the filled areas, there are two main options for the engineers, which are: penetrate through the fill to reach the natural soil layer or implement special precautions for using the fill as the foundation support.
Economic considerations for the foundation depth
Several economic factors may conflict with the ideal depth of the foundation structure. A deeper foundation is costly due to the increase in excavation, construction time and construction materials. In this case, the engineers have to optimise by raising foundation levels and also have to use concrete fill or incompressible materials like sand and gravel to minimise the cost. Thus, a layer of well-compacted granular material has been placed between the foundation and problematic soil layers, which helps to distribute the loads over a wider area and allows for a shallower foundation.
Discuss the process of calculating the depth of the foundation
The depth of the foundation has been calculated by using the formula given by Rankine, which is called Rankine’s Formula.
In this regard, the depth of the foundation can be: Dmin = (q/g) * [(1 – sinØ) / (1 + sinØ)]2
In this case,
- Dmin represents the minimum depth of the foundation in meters.
- G represents the density of unit weight of soil in kN/m3.
- Ø represents the repose in degrees.
- Q represents the intensity of the loads or the safe bearing capacity of the soil in kN/m2.
