How Shape Arrays Transform Geotechnical Risk Assessment

Geotechnical projects carry inherent ground movement risks that traditional point sensors often fail to detect in time. Shape arrays, also known as chaining inclinometers, provide continuous, real-time subsurface deformation data that gives project teams the visibility they need to act before small shifts become costly failures. This article breaks down how shape array technology works, where it delivers the most value, and what engineers should evaluate when selecting a monitoring approach for slopes, embankments, retaining walls, and deep excavations.

How Does Shape Array Monitoring Work?

What Are Shape Arrays and Chaining Inclinometers?

A shape array is a string of rigid segments connected by precision joints, installed vertically or horizontally inside a borehole casing. Each segment contains triaxial accelerometers and temperature sensors that measure tilt at fixed intervals along the array. The system calculates a full 3D displacement profile by combining tilt readings from every segment into a continuous deformation curve.

The term "chaining inclinometer" describes the same principle: individual inclinometer units linked in series so that each segment's position is referenced to the one below it. This chained architecture captures movement across the entire instrumented depth, not just at isolated points.

Selecting the right system starts with understanding how sensor design affects field performance. Organizations like Sixense provide shape array monitoring solutions built on chaining inclinometer technology that delivers continuous 3D displacement profiles from a single borehole installation, giving engineering teams the subsurface visibility they need to act on movement trends before they escalate.

How Do Shape Arrays Differ from Traditional Inclinometers?

Traditional inclinometers require a technician to lower a probe through a grooved casing, record tilt readings at set depth intervals, and return to the office to process the data. This manual process typically yields readings once per week or once per month, depending on project budgets and site access.

Shape arrays eliminate the manual step entirely. The sensors remain permanently installed in the casing and transmit data to a surface datalogger at intervals as short as every few minutes. This shift from periodic manual readings to automated, continuous measurement changes the type of risk information available to the project team. Ground movement trends that develop between manual visits become visible in near real time.

Accuracy is another differentiator. Because shape arrays use fixed, factory-calibrated segments, they remove operator variability from the measurement process. Probe-based inclinometers depend on consistent insertion technique, spiral correction, and casing groove alignment, all of which introduce measurement uncertainty over time.

What Types of Ground Movement Can Shape Arrays Detect?

Shape arrays measure lateral displacement, settlement, and heave along the full length of the borehole. They detect slow creep in clay slopes, rapid shear zone development during excavation, consolidation settlement in soft ground, and rebound movements after load removal.

The 3D displacement profile allows engineers to identify the exact depth and magnitude of a shear plane. This is critical for slope stability analysis, where knowing the failure surface depth determines whether a remediation design targets the right zone.

What Are the Primary Applications of Shape Array Monitoring?

Slope Stability and Landslide Early Warning

Slopes in cut-and-fill construction, highway embankments, and natural terrain all carry movement risk. Shape arrays installed through the anticipated failure zone provide continuous displacement data that feeds directly into early warning systems. When movement rates exceed predefined thresholds, automated alerts notify the project team before conditions reach a critical state.

For dam abutments and reservoir slopes, the stakes are higher. A missed acceleration in movement rate can lead to catastrophic failure. Continuous data from shape arrays gives dam safety engineers the trending information they need to distinguish seasonal thermal cycles from genuine instability.

Settlement Monitoring for Embankments and Dams

Embankment construction on soft ground generates consolidation settlement that must be tracked to verify design assumptions. Shape arrays installed horizontally beneath or within the embankment body measure settlement profiles across the full instrumented length.

This continuous profile reveals differential settlement patterns that discrete settlement plates or extensometers would miss. Engineers can compare measured settlement to predicted values from finite element models and adjust construction staging if divergence appears.

Deep Excavation and Retaining Wall Deformation Tracking

Urban excavations for basements, transit stations, and utility tunnels require strict deformation control to protect adjacent structures. Shape arrays installed behind retaining walls provide real-time wall deflection profiles from top to toe.

The data feeds directly into observational method frameworks, where construction proceeds in stages and each stage's measured deformation is checked against trigger levels. If wall movement approaches an amber or red threshold, the contractor can install additional bracing before the next excavation lift, rather than discovering excessive movement during a weekly manual survey.

What Makes Real-Time Data Acquisition a Risk Reduction Factor?

Continuous Measurement vs. Periodic Manual Readings

Risk in geotechnical construction is time-dependent. A retaining wall that was stable on Monday's manual reading can develop 15 mm of additional deflection by Wednesday if an unexpected clay layer is exposed during excavation. Periodic readings create blind spots between measurement events.

Continuous data from shape arrays closes those blind spots. The monitoring record becomes a time series rather than a scatter of isolated snapshots, and engineers can identify acceleration trends within hours of onset.

How Automated Alerts Accelerate Decision-Making

Raw data alone does not reduce risk. The value comes from connecting shape array output to a monitoring platform that applies threshold logic and sends notifications. When displacement rate exceeds a predefined velocity trigger (e.g., 2 mm/day), the system pushes an alert to the responsible engineer's phone or email.

This automated workflow compresses the response time from "next scheduled site visit" to "within minutes of the event." On large infrastructure projects where contract values reach several million dollars, that compressed response window can prevent a single incident from escalating into a project-stopping failure.

Integrating Shape Array Data with Monitoring Platforms

Modern monitoring platforms ingest data from multiple sensor types (shape arrays, piezometers, strain gauges, weather stations) and present a unified dashboard. Shape array displacement data can be overlaid with pore pressure trends and rainfall intensity to identify causal relationships.

This integration turns isolated sensor streams into a correlated risk picture. When pore pressure rises in a specific zone at the same time that shape array displacement accelerates at the corresponding depth, the engineering team has a clear, data-backed basis for intervention.

Key Factors for Selecting a Shape Array System

Sensor Resolution, Accuracy, and Installation Depth

Not all shape arrays perform equally. Segment length, sensor resolution, and cumulative accuracy over the full array length vary between manufacturers. For deep installations (30 m+), cumulative error from segment-to-segment drift becomes a critical specification to evaluate.

Engineers should request documented accuracy specifications per unit length and per total array length. A system that performs well over 10 m may not maintain acceptable accuracy at 50 m without additional calibration protocols.

Datalogger Compatibility and Field Conditions

The datalogger is the critical installation component that connects the in-ground sensor array to the surface communication system. Compatibility between the shape array and the datalogger determines data transmission frequency, power consumption, and remote access capability.

Field conditions matter. Projects in remote locations with no grid power need solar-powered dataloggers with low energy consumption. Arctic or tropical environments impose temperature ranges that exceed some hardware specifications. Matching the datalogger to the site's environmental constraints avoids data gaps caused by hardware failure.

Total Cost of Ownership vs. Risk Exposure

Shape arrays carry a higher upfront cost than traditional probe inclinometers. The investment includes the sensor array, datalogger, communication hardware, and platform licensing. Evaluating this cost in isolation misses the point.

The comparison should weigh the cost of continuous monitoring against the financial exposure of the risk being monitored. On a project where a slope failure could trigger a 6-month delay and millions in remediation, the cost of a shape array installation represents a fraction of the avoided loss. The business case is strongest on high-consequence projects where the cost of not knowing exceeds the cost of the instrument.

What Project Teams Should Know Before Deployment

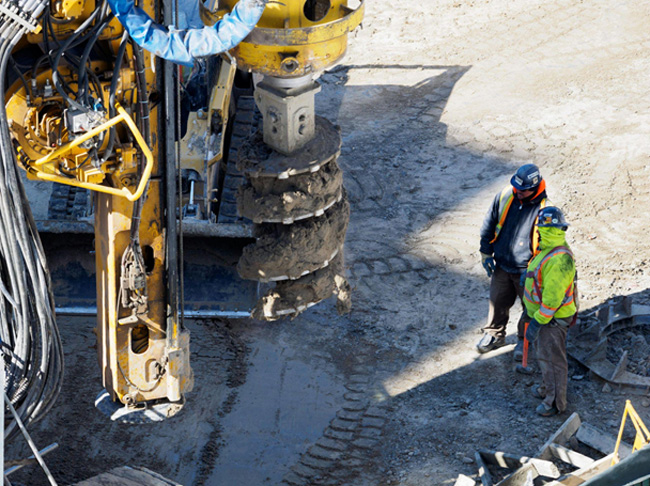

Site Assessment and Borehole Preparation

Shape array performance depends on proper borehole preparation. The casing must be installed plumb (or at the specified inclination), grouted to coupling with the surrounding ground, and sized to match the shape array diameter.

A poorly grouted borehole creates a gap between the casing and the soil, which delays the transfer of ground movement to the sensor. This lag reduces the system's ability to detect rapid movement events. Site investigation data (borehole logs, soil classification) should inform the grout mix design and casing selection before the array is ordered.

Calibration, Commissioning, and Data Validation

After installation, a baseline reading establishes the zero reference for all future displacement calculations. This baseline must be taken after the grout has cured and the casing has reached thermal equilibrium with the surrounding ground.

Commissioning includes verifying that all segments report within expected ranges, that the datalogger is recording at the specified interval, and that the monitoring platform is receiving and displaying data correctly. Skipping commissioning creates a risk of undetected sensor faults that corrupt the dataset weeks or months later.

Long-Term Maintenance and Sensor Longevity

Shape arrays are designed for multi-year deployments, but they are not maintenance-free. Datalogger batteries, solar panels, and communication modems require periodic inspection. Sensor drift over multi-year timescales should be tracked against independent survey benchmarks.

Projects with a monitoring duration of 5+ years should budget for at least one recalibration or validation survey during the instrument's service life. Planning for this upfront avoids a situation where long-term data quality degrades without anyone noticing until a critical decision depends on it.

Practical Gains from Continuous Subsurface Monitoring

Shape array technology shifts geotechnical risk management from reactive to proactive. Instead of discovering that a slope has moved 25 mm during the last monthly reading, engineers see the movement develop in real time and intervene at 5 mm, when corrective action is simpler and less expensive.

The operational gains extend beyond risk reduction. Continuous data reduces the need for conservative design assumptions driven by measurement uncertainty. When engineers can verify actual ground behavior against predictions in near real time, they can optimize construction sequences, reduce contingency budgets, and accelerate project timelines with confidence that the monitoring system will flag any deviation from expected performance.

For infrastructure projects where a single monitoring gap can lead to structural damage, regulatory penalties, or schedule delays measured in months, shape arrays represent a direct investment in project certainty.

Frequently Asked Questions About Shape Array Monitoring

What Is the Difference Between a Shape Array and a Standard Inclinometer?

A standard inclinometer uses a portable probe that a technician lowers through a casing to take periodic readings. A shape array is a permanently installed sensor string that measures displacement continuously and transmits data automatically to a datalogger. The primary differences are measurement frequency (continuous vs. periodic), operator dependency (automated vs. manual), and the ability to detect rapid movement events between scheduled visits.

How Deep Can Shape Arrays Be Installed?

Installation depth depends on the manufacturer's specifications and the cumulative accuracy over the array length. Most systems support installations in the range of 30 to 100 m. For deeper applications, engineers should evaluate cumulative segment-to-segment error and confirm that the total system accuracy meets project requirements at the target depth.

What Data Formats Do Shape Array Systems Output?

Shape array systems typically output displacement data in CSV or proprietary formats that integrate with monitoring platforms. The raw data includes tilt measurements per segment, which the system software converts into lateral displacement and settlement profiles. Most platforms support data export to standard engineering formats for use in slope stability and finite element analysis software.
